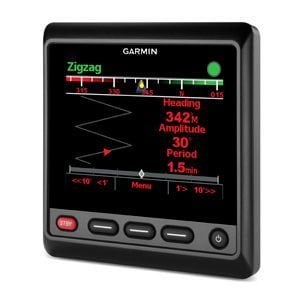

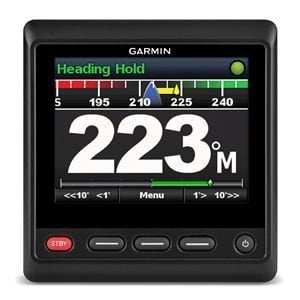

The GHC 20 autopilot helm controller is compatible with newer Garmin autopilots as well as legacy models on both power and sail vessels.
It's large, bright 4” color display is easy to read at a distance and 170 degree viewing angle. Glass-bonded anti-glare lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control.
An optional handheld wireless remote control is available; however, for the highest level of convenience, control the GHC 20 using quatix™, the world’s first marine GPS navigation watch featuring ANT® wireless technology. Power is supplied by the NMEA 2000® network. Included are 2 trim snap piece cover options which allow you to match the GHC 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.
Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)
Display resolution, WxH: 320 x 240 pixels
Display type: QVGA color LCD display
NMEA output: NMEA 0183, NMEA 2000®
Supply voltage: Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC
Operating temperature: -15° C to 70 C° (5° F to 158° F)
Max power consumption 12/24V: 200 mA/100 mA
Viewing angle: 170°
Brightness: 1000 cd/m2 (NIT)
