DRC SINT03 Beton Ters Örsü

DESCRIPTION

Non-destructive testing involving use of a rebound hammer is valid only if the instrument is regularly calibrated.

The calibration anvil is identified as a reference sample where you can compare various tools. That is, different rebound hammers must give the same calibration anvil value.

The calibration anvil therefore is an essential tool for checking the calibration of mechanical and electronic rebound hammers.

SPECIFICATIONS

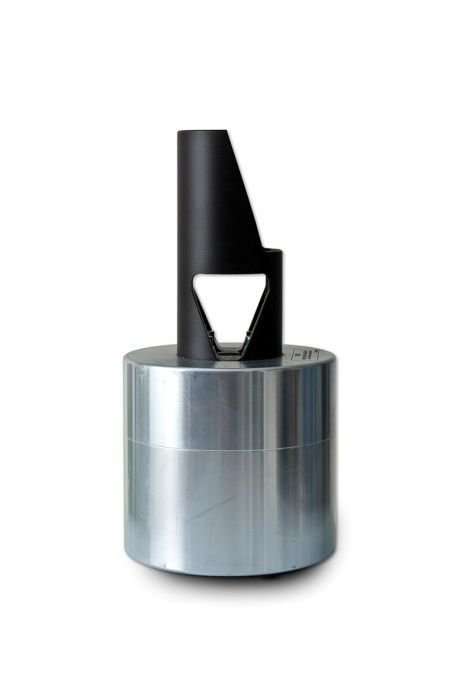

The TAM100 calibration anvil is made from a cylinder in steel C45 with a diameter of about 150mm and 150mm in height. A semi-spherical shape which mirrors the rebound hammer strike piston surface has been created on one of the two flat surfaces.

The shaped surface where impact occurs is characterised by a surface hardness no less than 52 HRC. The weight of this cylinder is 16Kg ±0.5 in full compliance with reference standards.

Mechanical Specifications

· Anvil : Steel C45

· Heat Treatment: Nichelatura

· Upper Part : Moplen



Physical

· Dimension : 150mm x 160mm

· Weigh: 16 Kg

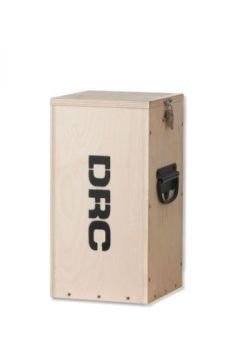

· Packing : 25 x 25 x 230 cm

· Hardness : > 60HRC

FIELD OF APPLICATION

The TAM100 calibration anvil is used to Verify  the calibration of all types of mechanical and electronic rebound hammers.

TAM100 calibration anvil complies with all reference standard requirements.

STANDARDS:

UNI EN 12504-2

ASTM C805
