DRC ECTHA PLUS 3000 N Tipi Dijital Beton Test Çekici

DESCRIPTION

The Ectha Plus Pro series rebound hammer for concrete allows for an analysis of on-site concrete quality in order to estimate the mechanical characteristics of the material. Investigations with the Ectha Pro Plus rebound hammer are based on the surface "hardness" measurement of material expressed in terms of the "Rebound Index." Investigations with the Mechanical or Digital Rebound Hammer falls under the category of Non Destructive methods, as implementation of the testing, in addition to not causing damage to structures and building function, involves relatively low costs.

 The DRC rebound hammer is available both in the Ectha 1000 "Mechanical rebound hammer" version and in the Ectha Plus Pro "Digital rebound hammer." Both models are supplied with KITs and accessories indispensable for proper investigation.

SPECIFICATIONS

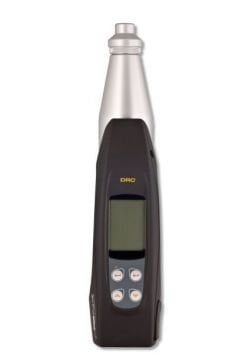

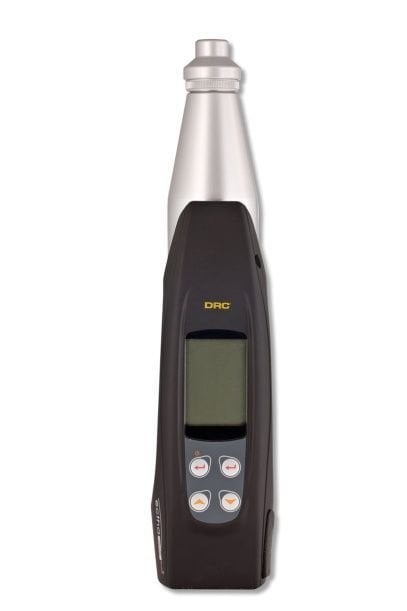

The Ectha Plus Pro Digital Rebound hammer associates all the performance and quality of the mechanical rebound hammer with electronic support performance, allowing users to obtain better "efficiency" during the investigation phase. Ectha Plus Pro ensures continuity and repeatability of measurements over time thanks to the instrument's non-contact optical-resistive reading system. Values recorded during on-site investigations are displayed and stored in the electronic device equipped with a Mini SD memory card.

 The Ectha Plus Pro Digital Rebound hammer is made from tested materials and is supplied with an attractive and functional ergonomic shape.

STANDARDS

Standard ISO/DIS 8045

EN 12 504-2

ENV 206

DIN 1048 parte 2

BS 1881 parte 202

ASTM C 805 ASTM D 5873(Rock)

NFP 18-417

B 15-225

JGJ/T 23-2001

JJG 817-1993

FIELD OF APPLICATION

The Rebound hammer method field of application is mainly directed toward evaluation of the following properties:

Concrete uniformity checks in different parts of the structure.

Estimation of the mechanical characteristics of the concrete through the use of correlation curves.

Evaluation of changes in concrete properties over time.

Verification of concrete characteristics on-site during the testing phase.

 The above-mentioned applications can therefore be summarised by stating that rebound hammer tests are to be used to estimate concrete compressive strength of already built structures.

Mechanical Components:

· Exsternal part : Aluminium 6060 -  11S

· Treatment : Anodizing Oxidation

· Internal Components: C40

· Heat Treatment: NIT-OX

· Movement rod: Steel INOX 303

· Handle: Hard Nylon

· Painting : Soft Grey Colours

Physical

· Dimension : 30 x 7 x 7 cm

· Weight: 1.1 Kg

· Packing  : 40 x 30 x 15

Performance

· Range : 5-120 Nmm

· Impact Energy : 2,207 Nm

· Limit Thickness Test : Thickness > 120mm



Software:

· PCB board with INTEL processor

· Colour display 64x128

· Rechargeable battery (one day work)

· Optical measurment system

· USB interface

· Memory Card 2Gb

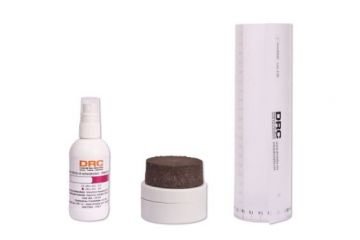

KIT Ectha Plus Pro Accessories

· Concrete Test Hammer  Digital ECTHA PLUS Pro

· Abrasion Stone

· Plastic Case for Stone

· Plastic Grid 30 x 30

· Pencil

· Fenolftaleina 250ml

· Paper Note

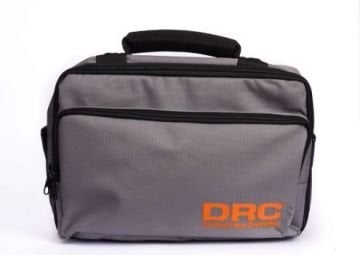

. Soft bag

· SD card 2Gb

· USB cable

· Rechargeable feeder

· Operating Manual

· Calibration Report
