DRC ECHTA 1000 N Tipi Beton Test Çekici

DESCRIPTION

The Ectha 1000 series rebound hammer for concrete allows for an analysis of on-site concrete quality in order to estimate the mechanical characteristics of the material. Investigations with the Ectha 1000 rebound hammer are based on the surface "hardness" measurement of material expressed in terms of the "Rebound Index."

Investigations with the Mechanical or Digital Rebound Hammer falls under the category of Non Destructive methods, as implementation of the testing, in addition to not causing damage to structures and building function, involves relatively low costs.

The DRC rebound hammer is available both in the Ectha 1000 "Mechanical rebound hammer" version and in the Ectha Plus Pro "Digital rebound hammer." Both models are supplied with KITs and accessories indispensable for proper investigation

SPECIFICATIONS

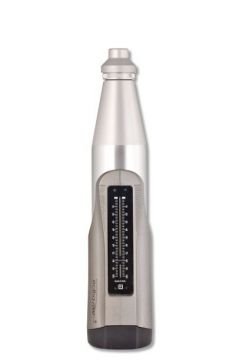

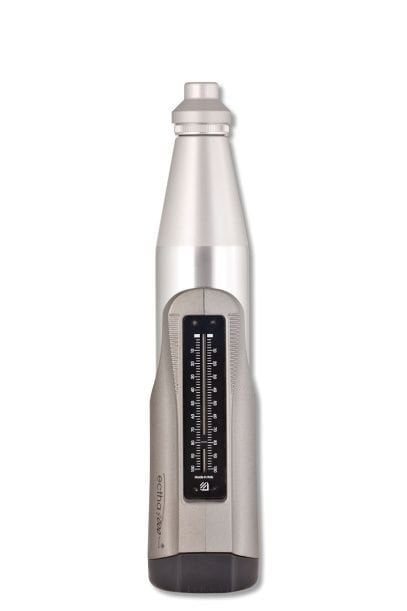

The Ectha 1000 Mechanical Rebound Hammer is made from the finest mechanical materials on the market today. Experience of over 30 years, strict quality control during processing and testing, and continued research and development today make the Ectha 1000 model Rebound hammer the most reliable on the world market. The Ectha 1000 Mechanical Rebound hammer is supplied with a rubberised plastic handle which facilitates manoeuvrability at work sites and protects it from possible accidental shock.

STANDARDS

StandardISO/DIS 8045

EN 12 504-2

ENV 206

DIN 1048 parte 2

BS 1881 parte 202

ASTM C 805 ASTM D 5873(Roccia)

NFP 18-417

B 15-225

JGJ/T 23-2001

JJG 817-1993

FIELD OF APPLICATION

The Rebound hammer method field of application is mainly directed toward evaluation of the following properties:

Concrete uniformity checks in different parts of the structure.

Estimation of the mechanical characteristics of the concrete through the use of correlation curves.

Evaluation of changes in concrete properties over time.

Verification of concrete characteristics on-site during the testing phase.

 The above-mentioned applications can therefore be summarised by stating that rebound hammer tests are to be used to estimate concrete compressive strength of already built structures.

Mechanical Components:

· Exsternal part : Aluminium 6060 -  11S

· Treatment : Anodizing Oxidation

· Internal Components: C40

· Heat Treatment: NIT-OX

· Movement rod: Steel INOX 303

· Handle: Hard Nylon

· Painting : Soft Grey Colours

Physical

 · Dimension : 30 x 7 x 7 cm

· Weight: 1.1 Kg

· Packing  : 40 x 30 x 15

Performance

· Range : 5-120 Nmm

· Impact Energy : 2,207 Nm

· Limit Thickness Test : Thickness > 120mm

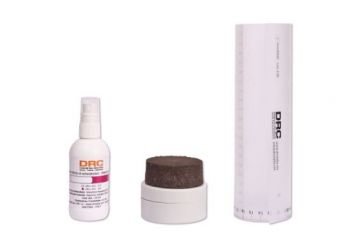

KIT Ectha1000 Accessories

· Concrete Test Hammer  Ectha 1000

· Abrasion Stone

· Plastic Case for Stone

· Plastic Grid 30 x 30

· Pencil

· Fenolftaleina 250ml

· Paper Note

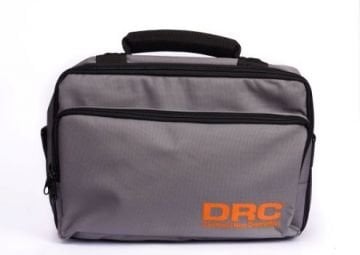

 Soft bag

· Operating Manual

· Calibration Report
